| Intravenous Administration |
|
|
|
|
Standard
|
With
Injection Site |
|
|

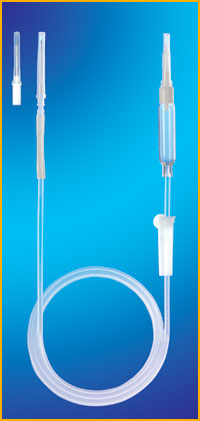

| Infusion
Set - Type 200 |
| Product Feature and
Specifications |
| • |
Non-vented set |
| • |
Designed to suit
fluid replenishment using flexible bag, or with an attached
air needle for semi-rigid containers or glass bottles |
| • |
ISO 8536-4 compliant
spike |
| • |
ISO 8536-4 compliant
drip chamber (15, 19 drop/ml) |
| • |
V-Clamp |
| • |
ISO 594/1 &
ISO 594/2 compliant end-connection |
| • |
Injection site (Y-site,
flashbulb or rubber tube) |
| • |
Transparent Hub |
| • |
Soft Clear Flexible
Tubing |
| • |
21 Vein Needle (Optional) |
| • |
Sterile Pack - ETO
(Ethylene Oxide) Sterilization validated according to
EN 550 Standards |
|
|
|
|

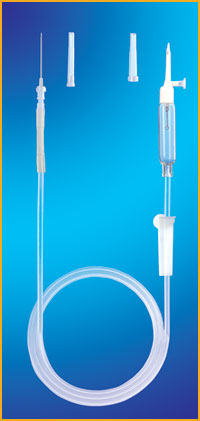

| Infusion
Set - Type 500 |
| Product Feature and
Specifications |
| • |
Vented set (Air
needle not required for venting) |
| • |
Designed to suit fluid replenishment
using rigid container as well as flexible bag |
| • |
ISO 8536-4 compliant spike |
| • |
ISO 8536-4 compliant drip chamber
(15, 19 drop/ml) |
| • |
15u Disc Filter |
| • |
V-Clamp |
| • |
ISO 594/1 & ISO 594/2 compliant
end-connection |
| • |
Injection site (Y-site, flashbulb
or rubber tube) |
| • |
Transparent Hub |
| • |
Soft Clear Flexible Tubing |
| • |
21 Vein Needle (Optional) |
| • |
Sterile Pack - ETO sterilization
according to EN 550 Standards |
|
|
|
|

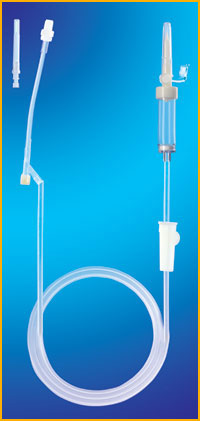

| Infusion
Set - Pediatric |
| Product Feature and
Specifications |
| • |
Non-Vented (Type
200) and Vented (Type 500) are available |
| • |
ISO 8536-4 compliant spike |
| • |
ISO 8536-4 compliant drip chamber
(60 drop/ml) |
| • |
Large Size V-Clamp |
| • |
ISO 594/1 & ISO 594/2 compliant
end-connection |
| • |
Injection site (Y-site, flashbulb
or rubber tube) |
| • |
Transparent Hub |
| • |
Soft Clear Flexible Tubing |
| • |
23G Vein Needle |
| • |
Sterile Pack - ETO sterilization
according to EN 550 Standards |
|
|
|
|

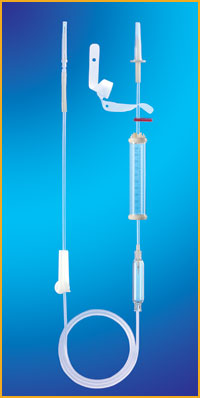

| Infusion
Set - Buret |
| Product Feature and
Specifications |
| • |
Buret in 100ml,
150ml and 200ml available with end without Auto-Shut
off Float Valve |
| • |
ISO 8536-4 compliant spike |
| • |
ISO 8536-4 compliant drip chamber
(60 drop/ml) |
| • |
Large Size V-Clamp |
| • |
ISO 594/1 & ISO 594/2 compliant
end-connection |
| • |
Injection site (Y-site, flashbulb
or rubber tube) |
| • |
Transparent Hub |
| • |
Soft Clear Flexible Tubing |
| • |
23G Vein Needle |
| • |
Sterile Pack - ETO terilization
according to EN 550 Standards |
|
|
|
|
 |
|
|
